WELCOME

to RAITH Maschinenbau, your test bench partner company with years of experience We design and manufacture test facilities and special machines for highly complex testing and adjustment tasks from a single source

HISTORY Milestones 1985 - The Company Raith was founded 1987 - Relocation to the headquaters at Ditzingen-Heimerdingen 1990 - Begins the development and production for test benches for the testing of hydraulic components

“Paths are made by walking them.” - Franz Kafka -

FACTS

We are their partner in the field

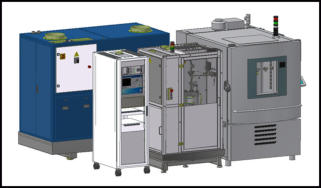

PULSATION TEST BENCH

Typical applications: • Fuel injections • Braking systems • Hydraulic (AERO, Automotive, Mechanical engineering) Technical details: • Pulse shapes o sine o trapeze o further pulse shapes possible • Pulse rates o up to 20 Hz (higher rates possible) • Pulse volume o up to 20 cm³ (higher rates possible) • Test pressure o max. 180 MPa (1800 bar) • Futher information on request

FUNCTION TEST BENCH

Typical applications: • For complex function tests in series production and quality assurance Technical details: • Individual structure and design according to the respective functional requirements and wishes of the customers • Further information on request
